50Ω Balun
50Ω Balun 3–30 MHz (100W) provides reliable balanced-to-unbalanced signal conversion with minimal loss. It improves impedance matching, reduces interference, and ensures stable performance for HF antennas and communication systems.
₹5,310
Are RF Army products covered under warranty?
How can I return a product?
Promo!
Balanced Signals with Clear Communication.
50Ω Balun ensures efficient impedance matching and minimal signal loss for HF applications. Built for stability and durability, it delivers reliable performance across a wide frequency range in demanding communication environments.
Electrical Specification
| Specification | Details |
|---|---|
| Model No. | BALUN-1 |
| Frequency Range | 3 – 30 MHz |
| Bandwidth | Full Band |
| Impedance (Z) | 50 Ω |
| VSWR | ≤ 1.8 : 1 |
| RF Power Handling Capacity | 100 W |
| Input Connector | UHF-Female (Default) / N-Female (Optional) |
Mechanical Specification
| Specification | Details |
|---|---|
| Net Weight | 300 g |
| Size | 140 × 120 × 55 mm |
| Colour | Light Grey |
| Material | Polycarbonate (Non-conductive & UV-retardant) |
Environmental Specification
| Specification | Details |
|---|---|
| Operating Temperature | –10°C to +50°C |
| Storage Temperature | –40°C to +130°C |
| Humidity | 0 to 95% RH |
Data Sheet

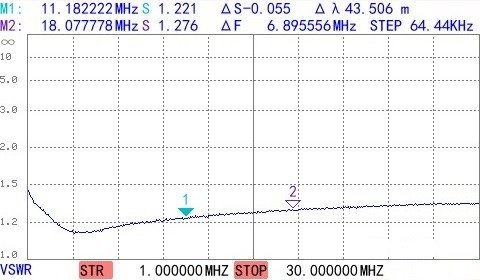

Test Report
